Solution for a Better Packaging

  Blister Machine
Reprocating Blister Packing M/C
往復式泡壳包装机
CH-560
Blister Machine, Reprocating Blister Packing M/C, CH-560

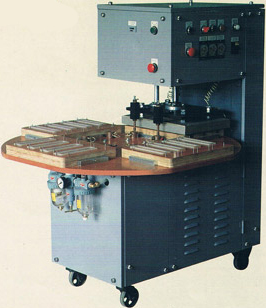

Rotary Table Blister Packing M/C
圆盘式泡壳包装机
CH-04
Blister Machine, Rotary Table Blister Packing M/C, CH-04

特性:
PP, PVC, PET泡壳与印刷精美的纸板瞬间接合而纸板不会变形,瞬热式,泡壳可完全密封。
操作容易、省电、省时、产量大。
本机适于一般大众化的商品,诸如玩具、文具、药品、糖果、电子零件、小五金等瞬间密封包装。

FEATURES:
Instantly sealing for the decorative paper board & PP, PVC, PET blister enveloping and the decorative paper board not to deform. Instant heating so that, fully enveloping for blister.
Easy operation, power & time save and high production rate.
The machine is suitable for popular commodity such as toy, stationery, durgs, candy, electronic parts, hardware etc., for instant enveloping.

规格 Specification:
单位 Unit: mm
型式
Model
包装面积
Packing area
包装能力
Packing capacity
电热
Electric heating
电压
Voltage
空压机
Air compressor
机械尺寸
Machine Size
CH-560
380 x 600
4-8 times/min
1.5KW
220V/1P
1/4HP
1850 x 500 x 1180
CH-04
420 x 350
6-12 times/min
1.8KW
220V/1P/3P
1HP
1300 x 1200 x 1100
