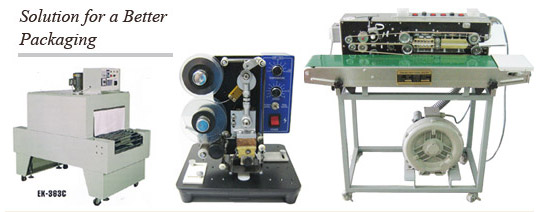

Solution for a Better Packaging
Shrink Tunnel Machine
PVC SHRINK PACKAGING MACHINE
EK-363C
EK-331
This machine is widely adaopted by the food, electronics, stationary, toy, fruit, salted material, metalware, tool, cosmetic, drug, clothing, daily use product, electrical appliance, bambooware, etc industries for shrink packing applications.
Specifications:
Spec.
Power
Heater
Shrink Tunnel
Machine Size
Packaging Goods
Motor
Conveyor
Models
Dimensions
L x W x H mm
Dimensions (W x H)
Speed (m/min)
EK-331
220V
5
700 x 350 x 150
1200 x 600 x 580
340 x 130
25W x 2
0 - 8
EK-342C
220V
5
700 x 400 x 200
1200 x 650 x 630
390 x 180
25W x 2
0 - 8
EK-342PL
220V 380V
10
1000 x 400 x 200
1350 x 710 x 1350
340 x 130
25Wx2, 1/2HPx1
0 - 8
EK-363C
220V 380V
15
1000 x 600 x 300
1600 x 1010 x 1570
510 x 280
90W, 1/2HPx1
0 - 12
EK-363E
220V 380V
15
1500 x 600 x 300
2500 x 1050 x 1550
420 x 200
1/2HPx1, 1/4HPx2
2 - 8
EK-395E
220V 380V
36
2000 x 900 x 500
3000 x 1260 x 1630
630 x 400
1/2HPx1, 1/4HPx2
2 - 8
* Custom Designs are available.
Unit: mm
* Specifications Subject To Change Without Notice.
