Solution for a Better Weight
  Digital Indicator

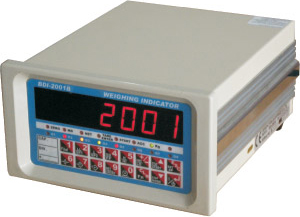

BDI-2001B series
Weighing Indicatior & Controller
                                    series, Weighing Indicatior &

• Weigh / Batch / Check.
• Full Digital Calibration
• HI / HH / LO / LL
• Function / button Key 0-9

Full Digital Calibration, HI / HH
                                          / LO / LL
• Large 0.8" Ultra Light LED Display
• A/D Conversion Rate 30 times/Sec.
• Internal resolution up to 1/500,000
• Power for eight 359 Ω Load Cells
• One set oints: Sp1, Sp2, FF, HI, LO/LL, LO, OK, HI, HH
• Function / button keys 0-9
• 8 Input/Output (Open Collector)
• Built-in RS-232 interface

OP-01 = Input/Output (8/8)
OP-02 = Serail Interface RS-232/ RS-422/ RS-485
OP-03 = Centronic Printer Interface (With date and time)
OP-04 = Parallel BCD Output
OP-05 = Analog Output (4-20mA)
OP-06 = Analog Output (0-10V)
OP-07 = Remove Set point Unit: Final Weight
Input/Output (8/8), Serail Interface RS-232/ RS-422/
                                          RS-485, Centronic Printer Interface (With date and time)
  Parallel BCD Output, Analog Output (4-20mA), Analog Output (0-10V)
Model   BDI-2001B
Power   AC220V±10%, 50 / 60Hz Approx. 17VA
Net. Weight   About 3.2kh (7.054lb)
Operation Temp  -10°C ~ 45°C
Max. Humidity   85% (Non-considering)
Dimension   248 (d) x 190 (W) x 104 (H) mm
Remove Set point Unit: Final
                                          Weight, RELAY CONTROL INTERFACE
                                    series, Perfomance
BDI-2001B series
High Performance Weighing / Batching Indicator
Perfomance Plus!
High Spees - High Accuracy - Full Safe Operation
                                    series, High Performance Weighing
                                    / Batching Indicator, Serial
                                          Interface RS-422/485
Power  85 ~ 132V AC or 170 ~ 264V AC 50V60Hz
Net Weight Approximately 1.3kg (2.7 lb)
Opearion Temperature  -5°C ~ 40°C (23°F ~ 104°F)
Storage Temperature -15°C ~ 70°C (-5°F ~ 158°F)
Operating Humidity (non-considering) R.H. < 85%
Physical Dimension  144 (W) x 72 (H) x 197 (D) mm
  5.67 (W) x 2.83 (H) x 7.76 (D) inches
Panel Cutout Dimension
138 + 1.0 /-0 (W) x 68 + 0.7/-0 (H) mm
5.43 + 0.04 / -0 (W) x 2.68 + 0.03 / -0 (H) inches
Memory Battery Backup
Lithium over six year without AC power
Standard Accessories
Manual, Fuses, Sticker, Serial Connector, Load cell connector, Rubber foot, Terminal cover
* Specifications subject to change without notice
  100 times/sec. High Speed Sampling
  High display resolution to 16,000 counts
  Up to 1 million counts of A/D resolution
  Monitor & control weighing and batching woth external or internal resolution
  Fuzzy and Automatic Free Fall Compensation (AFFC) for consistently accurate batching results
  Enter control set points through front keys or remotely through external thumbwheels
  Automatic weight and / or count accumulation
  Sub display provides feedback on all setpoints & simplies calibration
  Supplementary flow function assures accurates performance on each batch
  A host of communications capabilities:
    Rs-232C, RS-422/485. BCD, analog output and standard 4-20mA Current Loop
  Connect up to 10 AD-4401's with A&D's RS-422/485
  Compact DIN size housing speeds installation & reduces space
  Digital Span Calibration enhances technical support and sifficult installations
  Splash proof front panel and keys (IP-65)
  High sensitivity 0.3µV/d for more accurate measurements
  Automatic batching and customer programming capability
  Bright, clear fluorescent displays
  Hold and peak hold functions
  USer programmed timer settings and alarms
  Improve operational safety & performance
  Weigh-in and Loss-in-weight batching
                                    Spees - High Accuracy - Full Safe Operation, Parellel
                                          BCD Output (Open Collector) Options:
OP - 01 ——— Parellel BCD Output (Open Collector)
OP - 03 ——— Serial Interface RS-422/485
OP - 04 ——— Serial Interface RS-232C
OP - 05 ——— Setpoint Unit
OP - 07 ——— Analog Output (4-20mA)
 Only one can be selected from 01, 03 or 04
                                          Interface RS-232C, Setpoint Unit, Analog Output (4-20mA)
Full range

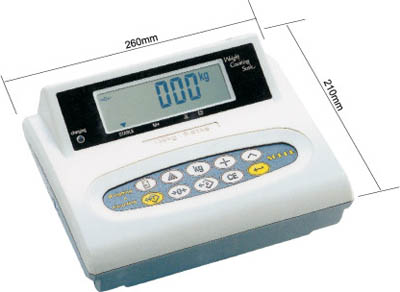

                                                    tare, Auto zero tracking, Check mode Lo/Hi/Ok   HW series
Weighing Indicator
HW series, Weighing Indicator, Sample counting, Preset weight or quantity
Up to 1/15,000 display resolution (Internal resolution 1/300.000)
Auto calibration
Kilogram (kg) and pound (lb) weighing modes
Large LCD display with EL backlight
Full range tare, Auto zero tracking, Check mode Lo/Hi/Ok,
Sample counting, Preset weight or quantity,
Weight accumulation, Hold function
Low power indication and Auto power off
Auto calibration, Weight accumulation, Hold
Weighing Scale, Johor Weighing Scale, Batu Pahat Weighing Scale,

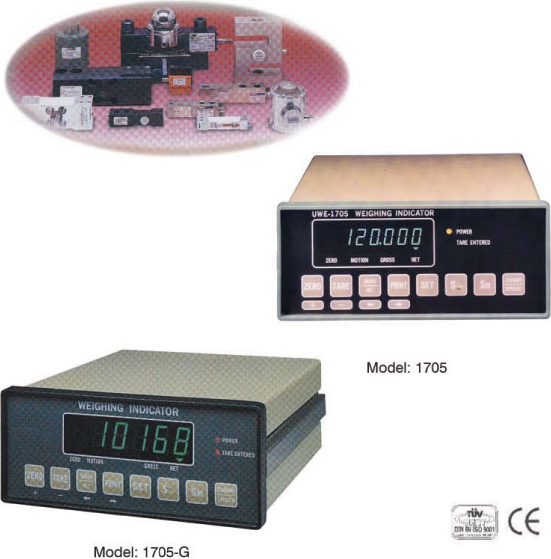

							Kluang Weighing Scale, Muar Weighing Scale   1705
Weighing Indicator
1705, Weighing Indicator, Model 1705, Model 1705

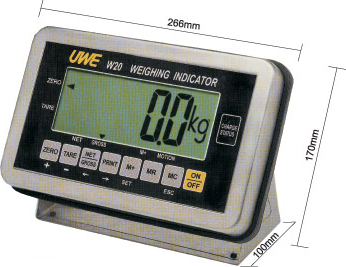

W20 seies, Stainless Stell Waterproof, Weighing Indicator   W20 series
Stainless Steel Waterproof
Weighing Indicator
All Stainless Steel Housing
Wash Down Design According to lp65
Up to 1/30,000 Display Resolution
User Friendly Setup, Calibration and Operation Procedures
Programmable capacity, Display Readability, Decimal Position, Zero Range, Zero Tracking Range/Speed and Motion Detection Range for Various Application and Environments
Programmable Computer and Printer Output Transmission and Date Format
Maximum Number of Load Cells Connected = 8 x 350Ω
Weighing Unit Selectable: Metric Ton, Kilogram, Pound and Gram
Tact-Switch Keyboard
Equipped with Memory Function and Motion Indicating Device
Password Function to Prevent Unauthorized Access
Dual Power Sources: Built-in Rechargeable Battery or Power Adaptor
Low Battery Warning Signal
Table Stand, Backlight and Built-in Rechargeable Battery are included
W20 seies, Stainless Stell Waterproof, Weighing Indicator
24 Bit ∑-∆ High Speed A/D Converter with over 1,000,000 Internal Count
Maximum Display Resolution 1/30,000
Maximum Input per Display Resolution: 0.1µV
A/D Conversion Rate: 50/second
Display Refresh Rate:25/second
Span Adjustment: 0.6m V/V to 4m V/V Full Scale
Zero Drift: <0.3 µV/°C
Span Drift: 8ppm/°C
Non-Linearity: <0.0033% R.O.
Load Cell Excitation: 5 Volts for up to 8 x 350Ω Load Cell
Power Supply: AC 110/230V± 10%, 50.60 Hz,
Rechargeable Battery 6V, 4Ah
Operating Temperature: 0°C ~40°C (32°F ~ 104°F)
Operating Relative Humidity: <90% Non-condesing
Options Available :
JB-65 Junction Box of Maximum 8 Load Cell Channel
UWE OP-5L Remote Display
Waterproof Bi-directional RS232C Interface
Printer Interface**
  Indicator is Not Waterproof if Printer Interface is Installed
W20 seies, Stainless Stell Waterproof, Weighing Indicator

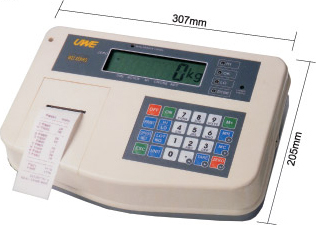

W20 seies, Stainless Stell Waterproof, Weighing Indicator   W22 series
Indicator with Mini-Printer
The Ideal Indicator :
Multi -function Indicator which can apply to: Checking Weighing, Truck Scale, and Simple Batching System.
User Friendly Setup, Calibration and Operation Procedures
Totally 15 different Printer Formats for Mini-Printer and Thermal Printer
Programmable Computer and Printer Output Transmission and Data Format
5 Points Linear Correction System to prevent linear error from the load cell
Built-in Digital Filter System to Prevent Environment Interference
Password Function to Prevent Unauthorized Access
Maximum Number of Load Cell = 8 x 350 ohm
Up to 1/30,000 Display Resolution
1,000,000 Internal Count
Weighing Unit Selectable: Matrix and Avoirdupois
Low Battery Warning Signal
Built-in Backlight
Built-in Rechargeable Battery
Built-in RS-232 interface
Bi-Direction Transfer between PC to Indicator with RS-232
HI-LO-OK-ZERO 4 set points
W22 series, Indicator with Mini-Printer
Display: 6 digits LCD, 26mm height
Display Resolution: Maximum of 30,000 counts
Division: 1, 2, 5, 10, 20, 50 selection
Input Sensitivity: 1.2 uV / division or above
Zero Adjustable Range: 2mV ~ 20 mV
Non-Linearity: +/- 0.0033% F.S.
A/D Conversion Speed: 50 times / sec
Maximum Input Voltage: 20 mV
Load Cell Excitation: DC 5 V (up to 8 x 350Ω load cells)
Zero Drift: 0.3 uV / °C (typ.)
Span Drift: +/- 8 PPM / °C (typ.)
Power supply: by built-in Rechargeable Battery and AC/DC Power Adaptor
Opeariong Tempature: 0 ~ 40°C
Operating humidity: < 90% R.H. Non-condensing
Net Weight: 2.8 kg
Dimension: 210 (D)X300 (W)X 120 (H)mm
                                                    Kit (Option Item)
Mounting Kit (Option Item)
Indicator with Mini-Printer, Mounting Kit
Print Out Sample
Options Available:
                        (Model: PS-30I) Indicator
Snowrex (Model: PS-30I) Indicator


* Large LCD display, 25mm (1 inch)
* Weight lock system
* Available from 500 kg to 1 tone
* Rechargeable Battery
