Solution for a Better Weight

Electronic Balance

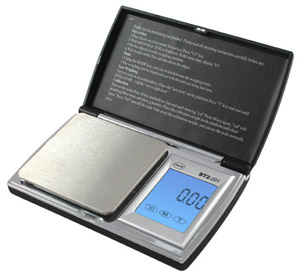

Electronic Pocket Balance

Specification: 50 ~ 200g x 0.01g

GX/GF Series
Super Hybird Sensor
Motor-driven Internal Calibration


Features:
•	Automatic Self Calibration
•	One Touch Automatic Calibration
•	Calibratiob is essential for accuracy in weighing
•	The GX's internal calibration mass is adjusted to an "OIML F1 class level"
•	Ultra Fast Respond Speed - Just 1 Second
•	Ultra High Performance with minimum maintenance costs
•	Incorporates bi-directional communication with a PC, printer or other peripheral device
•	A free copy of WinCT-A&D's powerful and flexible data collection software tool for virtually instant connection to a PC and a network of other devices

Specifications:

Model

GX-200

GX-400

GX-600

GX-800

GX-1000

GX-2000

GX-4000

GX-6100

GX-6000

GX-8000

GF-200

GF-300

GF-400

GF-600

GF-800

GF-1000

GF-1200

GF-2000

GF-3000

GF-4000

GF-6100

GF-6000

GF-8000

Weighing capacity

210g

310g

410g

610g

810g

1100g

1210g

2100g

3100g

4100g

6100g

8100g

Minimum weighing value

0.001g

0.01g

0.1g

Repeatability (Standard Deviation)

0.001g

0.01g

0.1g

Linearity

± 0.002g

± 0.003g

± 0.02g

± 0.03g

± 0.01g

Stabilization time (typical at FAST)

Approx. 1 second

Approx. 1.5 second

Approx. 1 second

Approx. 1.5 second

Approx. 1 second

Sensitivity drift
(10°C~30°C;50°F~80°F)

± 2ppm/°C (When automatic self calibration is not used)

± 5ppm/°C (auto-self calibration off)

Operation temperature

5°C~40°C(41°F~104°F), 85% RH or less (No condensation)

Sensing method

Super Hybird Sensor (SHS) *SHS: Patent issued and pending

Display type

Vacuum Fluorescent Display (VFD)

Display refresh rate

5 times/second or 10 times/second

Counting

0.0001g

0.01g

0.1g

Mode

10, 25, 50 or 100pieces

Percent

0.1000g

1.00g

10.0g

Mode

0.01%, 0.1%, 1% (Depends on reference mass stored)

Standard serail I/F

RS-232C Interface with Windows Communication Tools (WinCT: included as CD-ROM)

Weighing pan

128 x 128mm (5.04 x 5.04inch)

165 x 165mm (6.50 x 6.50inch)

Calibration

Motor-driven Internal Calibration (GX only)

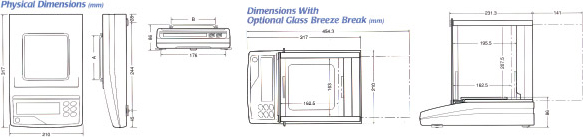

External dimensions

210 (W) x 317 (D) x 86 (H) mm (8.27 x 12.48 x 3.39 inch)

AC adaptor

Confirm that the adaptor type is correct for the local voltage and power receptacle

Power consumption

Approx. 11VA (supploed by AC adaptor

Net weight

Approx. 4.6kg (GX) / 3.8kg (GF)

Approx. 5.1kg (GX) / 4.3kg (GF)

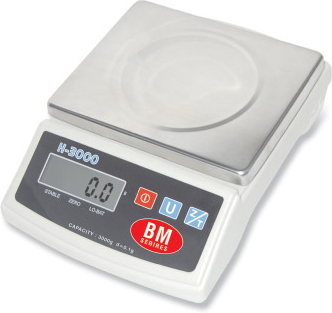

H Series
Electronic Compact Scales

Use in wide range of application including kitchen, office,
warehouse, laboratories and industries.

Specifications:

Model	Capacity	Division	Power Source	Pan Size
H-3000	3000g	0.1g	AA x 6/AC Adaptor	140 x 170mm
H-4000	4000g	0.5g	AA x 6/AC Adaptor	140 x 170mm
H-6000	6000g	1g	AA x 6/AC Adaptor	140 x 170mm

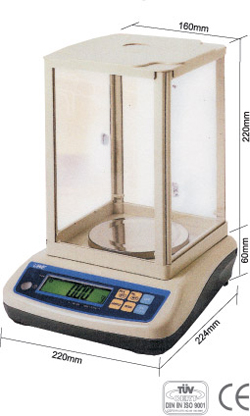

HJW Series
High Precision Balance

Features:
•	1/60000 Display Resolution
•	24 Bit ∑-∆ High Speed A/D Converter with over 1,000,000 Internal Court
•	Ideal for Laboratory and Jewelry Shops
•	6 x 19mm + 3 x 10mm Bold Type Wide Angle LCD Display Digits
•	13 User Programmable Weighing Units:- Metric, Metric Carat, Pound, Ounce, Dram, Grain (U.K), Troy Ounce, Pennyweight, Momme (Japan), Tael (Taiwan), Tael (China), Troy Tael, Tola (India)
•	User Friendly Operation
•	Equipped with Initial Zero Tracking, Manual Zero Setting, Percentage Weighing, Counting Function, Smart Power Saving and Auto Calibration
•	Dual Power Source: Built-in Rechargeable Battery or Power Adaptor
•	Long Battery Operating Time: 100 Hours Plus
•	Low Battery Warning Signal
•	See-through Easy Assemble Wind Shield
•	Adjustable Feet, Backlight, Bubble Level, Protection Cover, AC/DC Power Adaptor, RS232C Interface, Wind Shield and Stainless Steel Platter Included

Specifications:

Model No.	HJW-600
Capacity	600g
Readability	0.01g
Repeatability (Std. dev.)	0.01g
Pan Size	Ø110mm
Wind Shield	YES
Tare Range	Full Tare Range (Subtractive)
Power Source	By Built-in Rechargeable Battery or External Power Adaptor
Operating Environment	10° ~ 35°C / 50° ~ 95°F Non-condensed. R.H. <85%
Individual Package	310 X 310 X 230mm

** Specifications subject to change without notice

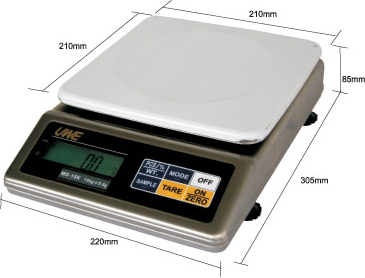

MS Series
Stainless Steel Portion Scale

Features:
•	All Stainless Steel Housing and Platter
•	Compact Size Low Profile Design
•	Protection Devices against Overload and Shock
•	1/3000 and 1/15000 Resolution Versions are Available for Various Applications
•	Bold Type LCD Display
•	Simple and User Friendly Design
•	Two Selectable Built-in Weight Units:- Metric and Avoirdupois
•	Support Conversion between Metric and Avoirdupois Weight Units
•	Equipped with Memory Accumulation, Memory Recall Automatic Tare, Power On Zero, Auto Zero Tracking, Full Subtractive Tare, Digital Auto Calibration and Auto Power Saving Function
•	Low Battery Indicator
•	Dual Power Source: By Built-in Rechargeable Battery or External Power Adaptor
•	AC/DC Power Adaptor, Bubble Level and Adjustable feet Included

Option Available:
•	Backlight

Specifications:

Model No.	Capacity	Divison	Resolution
MS-3000	3000g	0.1g	100000
MS-15K	15kg	0.5kg
MS-30K	30kg	1g
Platter	210 x 210mm all Stainless Steel
Power Source	By Built-in Rechargeable Battery or External Power Adaptor
Max. Zero Range	2% of Rated capacity
Max. Tare Range	100% of Rated capacity (Subtractive)
Weight Units	Metric & Avoirdupois
Operation Environment	0° ~ 40°C (32° ~ 104°F), Non-condensed. R.H. <85%

* Specification subject to change without notice
